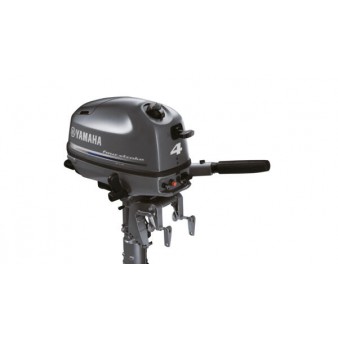

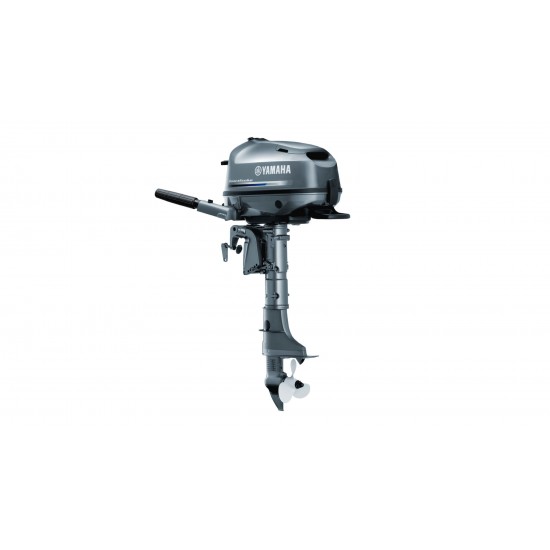

Yamaha Outboard Engine F4BMHS Standard Shaft

COLLECTION OR DELIVERY BY ARRANGEMENT ONLY

PDI INCLUDED IN PRICE

This attractive engine, with its smart, stylish looks, offers all the power you need to hit the water with confidence. The F4 is also convenient to store - and so light and easy to handle that carrying one between the shore and the deck of your sailing boat really is a breeze., offers all the power you need to hit the water with confidence. The F4 is also convenient to store - and so light and easy to handle that carrying one between the shore and the deck of your sailing boat really is a breeze.

The compact size, large carrying handle and built-in fuel tank all enhance its portability – and start-up is easy with Yamaha's CDI Ignition System. Low fuel consumption, simple controls and low noise and vibration levels, along with Yamaha reliability, come as standard.

So for families to get on the water easily - or for a yacht owner wanting a handy auxiliary - the F4 offers the smartest solution.

Engine
Engine type: 4-stroke
Displacement: 139 cm³
No. of cylinders/configuration: 1, OHV
Bore x stroke: 62.0 mm x 46.0 mm
Prop shaft output at mid range: 2.9kW / 4,500 rpm
Full throttle operating range: 4,000 - 5,000 rpm
Lubrication system: Wet sump
Fuel Induction System: 1-Carb
Ignition / advance system: CDI
Starter system: Manual
Gear ratio: 2.08 (27/13)

Dimensions
Recommended boat transom height: S:440mm
Weight with propeller: F4BMHS: 27.0 kg
Fuel tank capacity: 1.1 litres (Built-in fuel tank) or optional seperate fuel tank
Oil pan capacity: 0.6 litres
